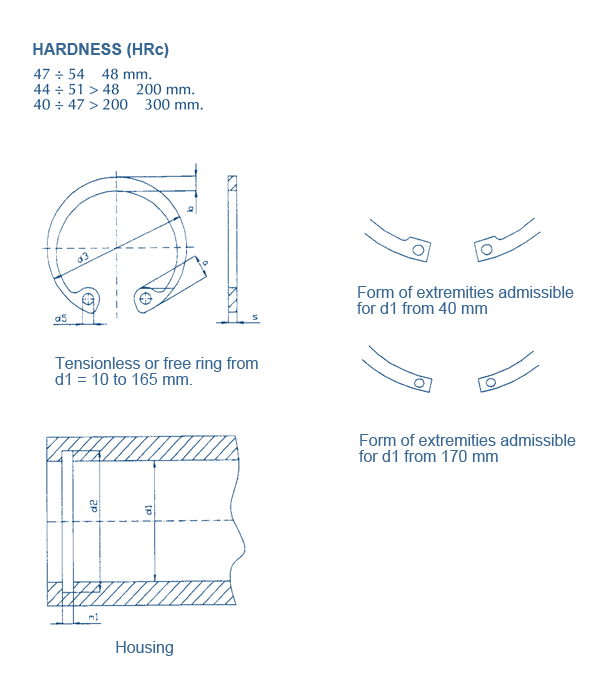

RETAINING RINGS
DIN 472
| Ref. | Axle diameter d1 | Thickness S | Tolerance (thickness S) | d3 |
|---|---|---|---|---|
| I008 | 0.9 | 0.09/0 | 8.4 | 0.140 |
| I009 | 0.9 | 0.09/0 | 9.4 | 0.150 |
| I010 | 1.1 | 0.11/0 | 10.4 | 0.180 |
| I011 | 1.1 | 0.11/0 | 11.4 | 0.310 |
| I012 | 1.1 | 0.11/0 | 12.5 | 0.370 |
| I013 | 1.1 | 0.11/0 | 13.6 | 0.420 |
| I014 | 1.1 | 0.11/0 | 14.6 | 0.520 |
| I015 | 1.1 | 0.11/0 | 15.7 | 0.560 |
| I016 | 1.1 | 0.11/0 | 16.8 | 0.600 |
| I017 | 1.1 | 0.11/0 | 17.8 | 0.650 |
| I018 | 0.42/-0.13 | 19.5 | 0.0/-0.06 | 1 |
| I019 | 19 | 1 | 0.0/-0.06 | 20.5 |
| I020 | 20 | 1 | 0.0/-0.06 | 21.5 |
| I021 | 21 | 1 | 0.0/-0.06 | 22.5 |
| I022 | 22 | 1 | 0.0/-0.06 | 23.5 |
| I023 | 23 | 1.20 | 0.0/-0.06 | 24.7 |
| I024 | 24 | 1.20 | 0.0/-0.06 | 25.9 |
| I025 | 25 | 1.20 | 0.0/-0.06 | 26.9 |
| I025,4 | 25 | 1.20 | 0.0/-0.06 | 27.3 |
| I026 | 26 | 1.20 | 0.0/-0.06 | 27.9 |
| I027 | 27 | 1.20 | 0.0/-0.06 | 29 |
| I028 | 28 | 1.20 | 0.0/-0.06 | 30.1 |
| I029 | 29 | 1.20 | 0.0/-0.06 | 31.1 |
| I030 | 30 | 1.20 | 0.0/-0.06 | 32.1 |
| I031 | 31 | 1.20 | 0.0/-0.06 | 33.4 |
| I032 | 32 | 1.20 | 0.0/-0.06 | 34.4 |
| I033 | 33 | 1.20 | 0.0/-0.06 | 35.5 |
| I034 | 34 | 1.50 | 0.0/-0.06 | 36.5 |
| I035 | 35 | 1.50 | 0.0/-0.06 | 37.8 |
| I036 | 36 | 1.50 | 0.0/-0.06 | 38.8 |
| I037 | 37 | 1.50 | 0.0/-0.06 | 39.8 |
| I038 | 38 | 1.50 | 0.0/-0.06 | 40.8 |
| I039 | 39 | 1.50 | 0.0/-0.06 | 42 |
| I040 | 40 | 1.75 | 0.0/-0.06 | 43.5 |
| I041 | 41 | 1.75 | 0.0/-0.06 | 44.5 |
| I042 | 42 | 1.75 | 0.0/-0.06 | 45.5 |
| I044 | 44 | 1.75 | 0.0/-0.06 | 47.5 |
| I045 | 45 | 1.75 | 0.0/-0.06 | 48.5 |
| I046 | 46 | 1.75 | 0.0/-0.06 | 49.5 |
| I047 | 47 | 1.75 | 0.0/-0.06 | 50.5 |
| I048 | 48 | 1.75 | 0.0/-0.06 | 51.5 |
| I049 | 49 | 1.75 | 0.0/-0.06 | 52.5 |
| I050 | 50 | 2 | 0.0/-0.07 | 54.2 |
| I052 | 52 | 2 | 0.0/-0.07 | 56.2 |
| I053 | 53 | 2 | 0.0/-0.07 | 57.2 |
| I055 | 55 | 2 | 0.0/-0.07 | 59.2 |
| I056 | 56 | 2 | 0.0/-0.07 | 60.2 |
| I057 | 57 | 2 | 0.0/-0.07 | 61.2 |
| I058 | 58 | 2 | 0.0/-0.07 | 62.2 |
| I060 | 60 | 2 | 0.0/-0.07 | 64.2 |
| I062 | 62 | 2 | 0.0/-0.07 | 66.2 |
| I065 | 65 | 2.50 | 0.0/-0.07 | 69.2 |
| I067 | 67 | 2.50 | 0.0/-0.07 | 71.5 |
| I068 | 68 | 2.50 | 0.0/-0.07 | 72.5 |
| I070 | 70 | 2.50 | 0.0/-0.07 | 74.5 |
| I072 | 72 | 2.50 | 0.0/-0.07 | 76.5 |
| I075 | 75 | 2.50 | 0.0/-0.07 | 79.5 |
| I078 | 78 | 2.50 | 0.0/-0.07 | 82.5 |
| I080 | 80 | 2.50 | 0.0/-0.07 | 85.5 |
| I082 | 82 | 2.50 | 0.0/-0.07 | 87.5 |
| I085 | 85 | 3 | 0.0/-0.08 | 90.5 |
| I090 | 90 | 3 | 0.0/-0.08 | 95.5 |
| I095 | 95 | 3 | 0.0/-0.08 | 100.5 |
| I098 | 98 | 3 | 0.0/-0.08 | 103.5 |
| I100 | 100 | 3 | 0.0/-0.08 | 105.5 |
| I102 | 102 | 4 | 0.0/-0.10 | 108 |
| I105 | 105 | 4 | 0.0/-0.10 | 112 |
| I108 | 108 | 4 | 0.0/-0.10 | 115 |
| I110 | 110 | 4 | 0.0/-0.10 | 117 |
| I115 | 115 | 4 | 0.0/-0.10 | 122 |
| I120 | 120 | 4 | 0.0/-0.10 | 127 |
| I125 | 125 | 4 | 0.0/-0.10 | 132 |
| I130 | 130 | 4 | 0.0/-0.10 | 137 |
| I135 | 135 | 4 | 0.0/-0.10 | 142 |
| I140 | 140 | 4 | 0.0/-0.10 | 147 |
| I145 | 145 | 4 | 0.0/-0.10 | 152.0 |
| I150 | 150 | 4 | 0.0/-0.10 | 158.0 |
| I155 | 155 | 4 | 0.0/-0.10 | 164.0 |
| I160 | 160 | 4 | 0.0/-0.10 | 169.0 |
| I165 | 165 | 4 | 0.0/-0.10 | 174.5 |
| I170 | 170 | 4 | 0.0/-0.10 | 179.5 |
| I175 | 175 | 4 | 0.0/-0.10 | 184.5 |
| I180 | 180 | 4 | 0.0/-0.10 | 189.5 |
| I185 | 185 | 4 | 0.0/-0.10 | 194.5 |
| I190 | 190 | 4 | 0.0/-0.10 | 199.5 |
| I195 | 195 | 4 | 0.0/-0.10 | 204.5 |
| I200 | 200 | 4 | 0.0/-0.10 | 209.5 |
| I205 | 205 | 5 | 0.0/-0.12 | 217 |
| I210 | 210 | 5 | 0.0/-0.12 | 222 |
| I215 | 215 | 5 | 0.0/-0.12 | 227 |
| I220 | 220 | 5 | 0.0/-0.12 | 232 |
| I225 | 225 | 5 | 0.0/-0.12 | 237 |
| I230 | 230 | 5 | 0.0/-0.12 | 242 |
| I235 | 235 | 5 | 0.0/-0.12 | 247 |
| I240 | 240 | 5 | 0.0/-0.12 | 252 |
| I245 | 245 | 5 | 0.0/-0.12 | 257 |
| I250 | 250 | 5 | 0.0/-0.12 | 262 |
| I255 | 255 | 5 | 0.0/-0.12 | 270 |
| I260 | 260 | 5 | 0.0/-0.12 | 275 |
| I265 | 265 | 5 | 0.0/-0.12 | 280 |
| I270 | 270 | 5 | 0.0/-0.12 | 285 |
| I275 | 275 | 5 | 0.0/-0.12 | 290 |
| I280 | 280 | 5 | 0.0/-0.12 | 295 |
| I285 | 285 | 5 | 0.0/-0.12 | 300 |
| I290 | 290 | 5 | 0.0/-0.12 | 305 |
| I295 | 295 | 5 | 0.0/-0.12 | 310 |
| I300 | 300 | 5 | 0.0/-0.12 | 315 |
| I305 | 305 | 6 | 0.0/-0.15 | 322 |
| I310 | 310 | 6 | 0.0/-0.15 | 327 |
| I315 | 315 | 6 | 0.0/-0.15 | 332 |
| I320 | 320 | 6 | 0.0/-0.15 | 337 |
| I325 | 325 | 6 | 0.0/-0.15 | 342 |
| I330 | 330 | 6 | 0.0/-0.15 | 347 |
| I335 | 335 | 6 | 0.0/-0.15 | 352 |
| I340 | 340 | 6 | 0.0/-0.15 | 357 |
| I345 | 345 | 6 | 0.0/-0.15 | 362 |
| I350 | 350 | 6 | 0.0/-0.15 | 367 |
| I355 | 355 | 6 | 0.0/-0.15 | 372 |
| I360 | 360 | 6 | 0.0/-0.15 | 377 |
| I365 | 365 | 6 | 0.0/-0.15 | 382 |
| I370 | 370 | 6 | 0.0/-0.15 | 387 |
| I375 | 375 | 6 | 0.0/-0.15 | 392 |
| I380 | 380 | 6 | 0.0/-0.15 | 397 |
| I385 | 385 | 6 | 0.0/-0.15 | 402 |
| I390 | 390 | 6 | 0.0/-0.15 | 407 |
| I395 | 395 | 6 | 0.0/-0.15 | 412 |
| I400 | 400 | 6 | 0.0/-0.15 | 417 |
| I410 | 410 | 7 | 0.0/-0.15 | 430 |
| I420 | 420 | 7 | 0.0/-0.15 | 440 |
| I430 | 430 | 7 | 0.0/-0.15 | 450 |
| I440 | 440 | 7 | 0.0/-0.15 | 460 |
| I450 | 450 | 7 | 0.0/-0.15 | 470 |
| I460 | 460 | 7 | 0.0/-0.15 | 480 |
| I470 | 470 | 7 | 0.0/-0.15 | 490 |
| I480 | 480 | 7 | 0.0/-0.15 | 500 |
| I490 | 490 | 7 | 0.0/-0.15 | 510 |
| I500 | 500 | 7 | 0.0/-0.15 | 520 |
